Products
JMQ-60Z Automatic Precise
Cutting Machine

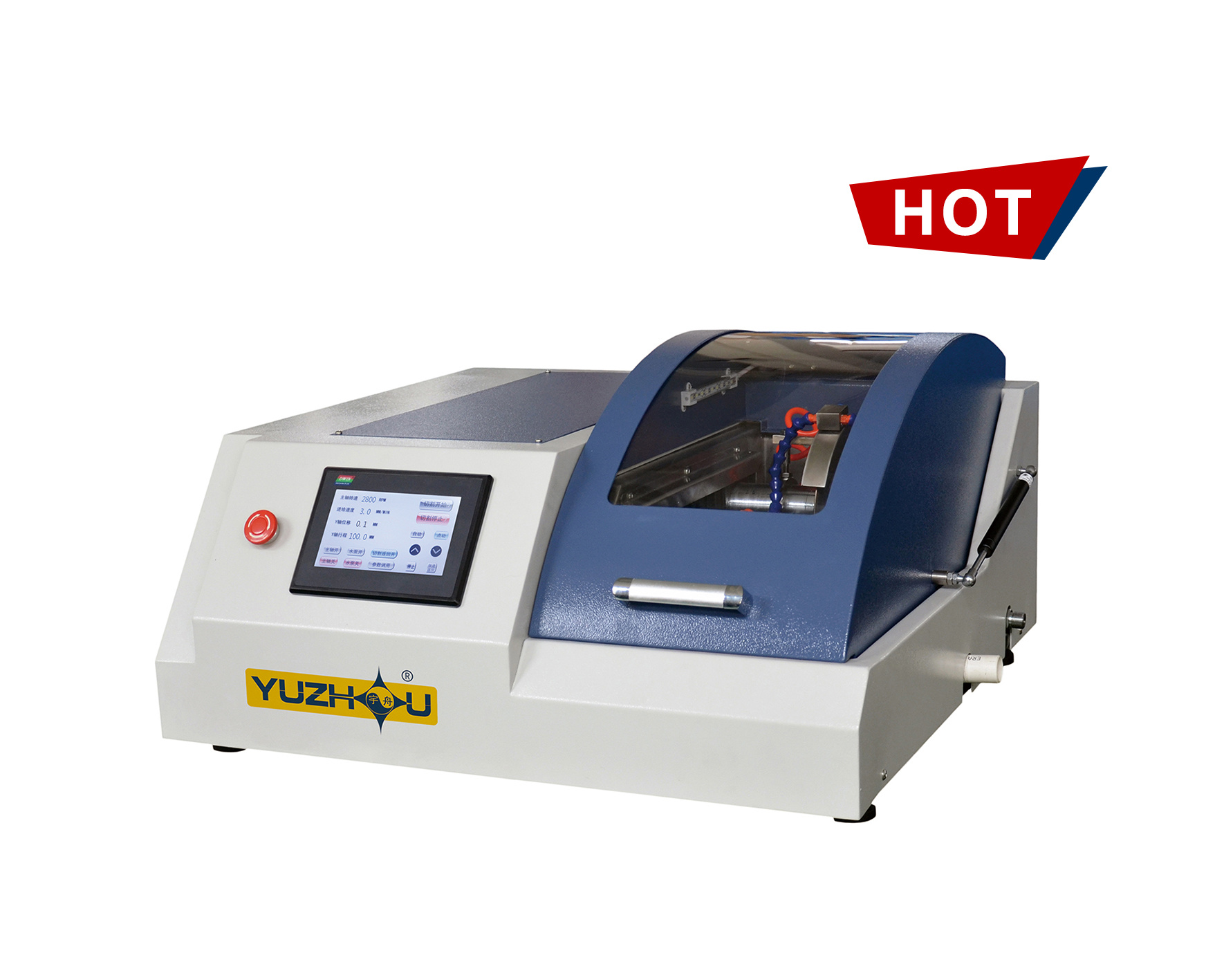

JMQ-60Z Automatic Precise Cutting Machine
Introduction:
JMQ-60Z automatic precision cutting machine is controlled by single chip, which is suitable for precise deformable cutting of metals, electronic components, ceramic materials, crystals, cemented carbides, rocks, minerals, concrete, organic materials, biological materials (teeth, bones) and other materials. This machine cuts along Y axis which has high accuracy of positioning, wide range of speed regulating and strong cutting ability with the touch screen control and display. The cutting chamber adopts totally enclosed structure with safety limit switch and transparent window for observation. With the circulation cooling system, the surface of the cut sample is bright and smooth without burns. It is the classic selection of benchtop automatic cutting machine.
Technical Parameters:
|
Model |
JMQ-60Z |
|
Cutting Method |
Automatic, Spindle feeding along Y axis |
|
Feed Speed |
0.7-36mm/min (Step 0.1mm/min) |
|
Cut-off Wheel |
Φ205×1.2×Φ32mm |
|
Max. Cutting Capacity |
Φ 60mm |
|
Y axis Travel |
200mm |
|
Spindle Span |
125mm |
|
Spindle Speed |
500-3000r/min |
|
Electromotor Power |
1300W |
|
Cutting Table |
320×225mm，T-slot 12mm |
|
Clamping Tool |
Quick clamp，Jaw height 45mm |
|
Control and Display |
7 inch touch screen |
|
Power Supply |
220V, 50Hz, 10A (380V optional) |
|
Dimensions |
850×770×460mm |
|
Net Weight |
140kg |
|
Water Tank Capacity |
36L |
|
Pump Flow |
12L/min |
|
Water Tank Dimensions |
300×500×450mm |
|
Water Tank Weight |
20kg |
Packing List:
|
Name |
Specification |
Qty |
|
Machine Body |
|
1 set |
|
Water Tank |
|
1 set |
|
Cut-off Wheel |
Φ205×1.2×Φ32mm Resin cut-off wheel |
1 pc |
|
Cut-off Wheel |
Φ205×1.2×Φ32mm White Alundum cut-off wheel |
1 pc |
|
Cutting Fluid |
3kg |
1 bottle |
|
Spanner |
14×17mm，17×19mm |
each 1 pc |
|
Inner Hexagon Spanner |
6mm |
1 pc |
|
Water Inlet Pipe |
|
1 pc |
|
Water Outlet Pipe |
|
1 pc |
|
Usage Instruction Manual |
|
1 copy |
