QG-4A Multifunctional Cutting
Machine(Quick Clamp)
Introduction:

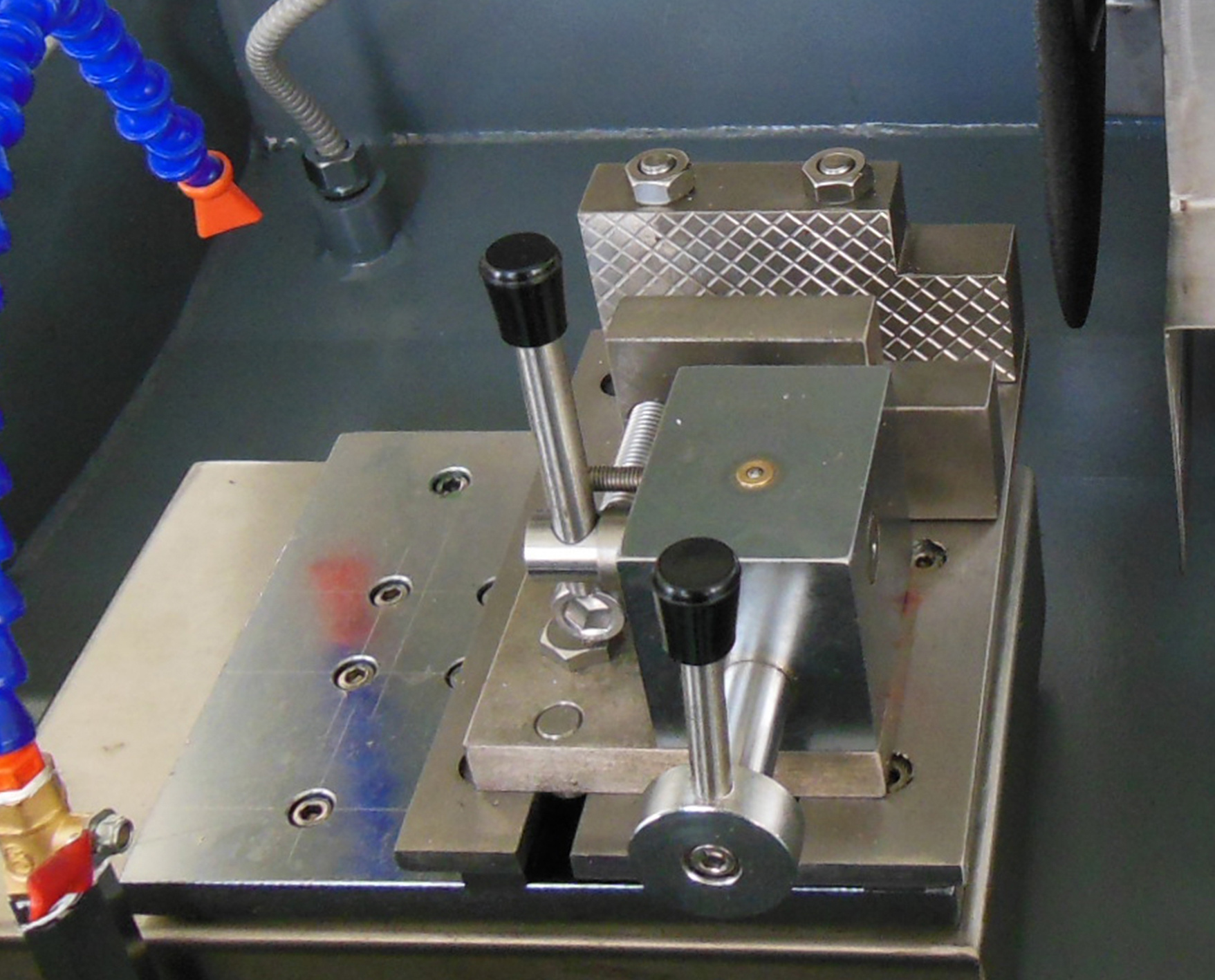

This machine is suitable for various metallographic materials. The cutting thickness of the material can be adjusted by the lateral movement of the cutting table, and then the sample can be cut by the longitudinal movement of the spindle, which has strong cutting ability and convenient operation. The main parts of the clamp and cutting table are all made of stainless steel, which has long service life and convenient maintenance. The cutting chamber adopts closed structure with safety limit switch, and it has the transparent plexiglass window and built-in LED lamp for observation when cutting. With cabinet structure, it is easy to store all kinds of cutting consumables. With circulating cooling water tank, the surface of the sample after cutting is bright and flat without burns, thus it is the ideal equipment for sample cutting.
Technical Parameters:
|
Model |
QG-4A |
|
Cutting Method |
Manual, Spindle feeding along Y axis |
|
Cut-off Wheel |
Φ250×2×Φ32mm |
|
Max. Cutting Capacity |
65×65mm |
|
X Axis Travel |
45mm |
|
Y Axis Travel |
270mm |
|
Spindle Speed |
2800r/min |
|
Electromotor Power |
1.5kW |
|
Cutting Table |
130×190mm，T-slot 12mm |
|
Clamping Tool |
Quick clamp，Jaw height 60mm |
|
Power Supply |
380V, 50Hz，6A, Three-phase four-wire |
|
Dimensions |
700×520×1110mm |
|
Net Weight |
170kg |
|
Water Tank Capacity |
60L |
|
Pump Flow |
25L/min |
|
Water Tank Dimensions |
565×360×600mm |
|
Water Tank Weight |
27kg |
Packing List:
|
Name |
Specification |
Qty |
|
Machine Body |
|
1 set |
|
Water Tank |
|
1 set |
|
Cut-off Wheel |
Φ250×2×Φ32mm Resin cut-off wheel |
1 pc |
|
Spanner |
36mm, 14×17mm, 24×27mm |
each 1 pc |
|
Water Inlet Pipe |
|
1 pc |
|
Water Outlet Pipe |
|
1 pc |
|
Usage Instruction Manual |
|
1 copy |
