QG-5 Metallographic Sample Cutting Machine
Introduction:

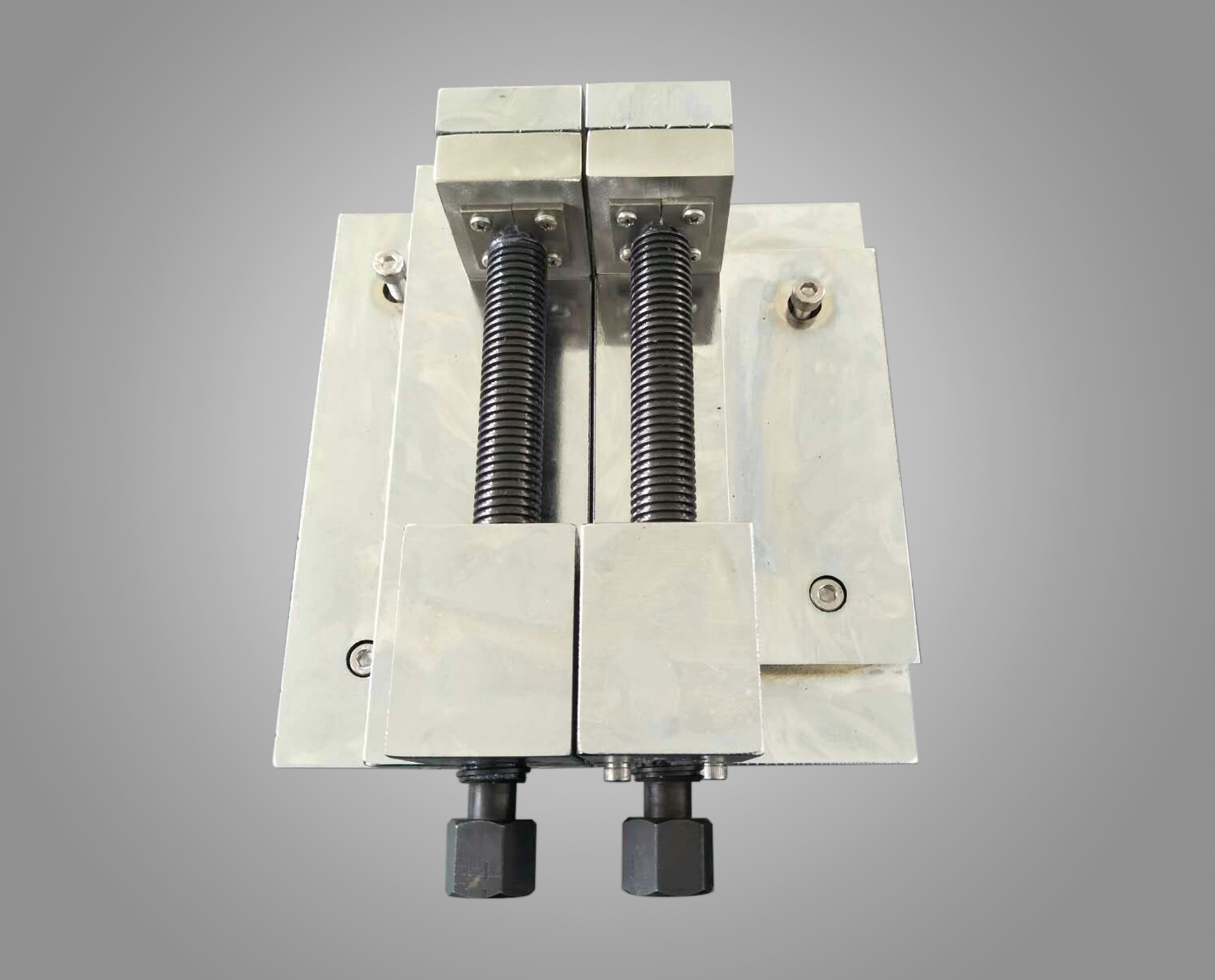

This machine is suitable for various metallographic materials. The sample can be cut by the longitudinal movement of the table, which has large cutting range and strong cutting ability. It adopts the double-sided clamp structure, which can fix the sample firmly. The main parts of the clamp and cutting table are all made of stainless steel and with built-in flushing water gun, it has long service life and convenient maintenance. The cutting chamber adopts two sides’ transparent plexiglass window, built-in LED lamp and powerful exhaaust fan, which makes observation more clear. With cabinet structure, it is easy to store all kinds of cutting consumables. With circulating cooling water tank, the surface of the sample after cutting is bright and flat without burns, thus it is the ideal equipment for sample cutting.
Technical Parameters:
|
Model |
QG-5 |
|
Cutting Method |
Manual, Table feeding along Y axis |
|
Cut-off Wheel |
Φ380×2.8×Φ32mm |
|
Max. Cutting Capacity |
100×120mm |
|
Y Axis Travel |
265mm |
|
Spindle Speed |
2800r/min |
|
Electromotor Power |
4kW |
|
Cutting Table |
250×240mm，T-slot 12mm |
|
Clamping Tool |
Threaded clamp，Jaw height 60mm, Opening 120mm |
|
Power Supply |
380V, 50Hz，10A, Three-phase five-wire |
|
Dimensions |
800×900×1640mm |
|
Net Weight |
340kg |
|
Water Tank Capacity |
100L |
|
Pump Flow |
25L/min |
|
Water Tank Dimensions |
460×600×680mm |
|
Water Tank Weight |
36kg |
Packing List:
|
Name |
Specification |
Qty |
|
Machine Body |
|
1 set |
|
Water Tank |
|
1 set |
|
Cut-off Wheel |
Φ380×2.8×Φ32mm, Resin cut-off wheel |
2 pcs |
|
Spanner |
36mm，46mm |
each 1 pc |
|
Inner Hexagon Spanner |
5mm，6mm |
each 1 pc |
|
Socket Spanner |
24mm |
1 pc |
|
Water Inlet Pipe |
|
1 pc |
|
Water Outlet Pipe |
|
1 pc |
|
Fan Pipe |
|
1 pc |
|
Fan |
|
1 pc |
|
Usage Instruction Manual |
|
1 copy |
