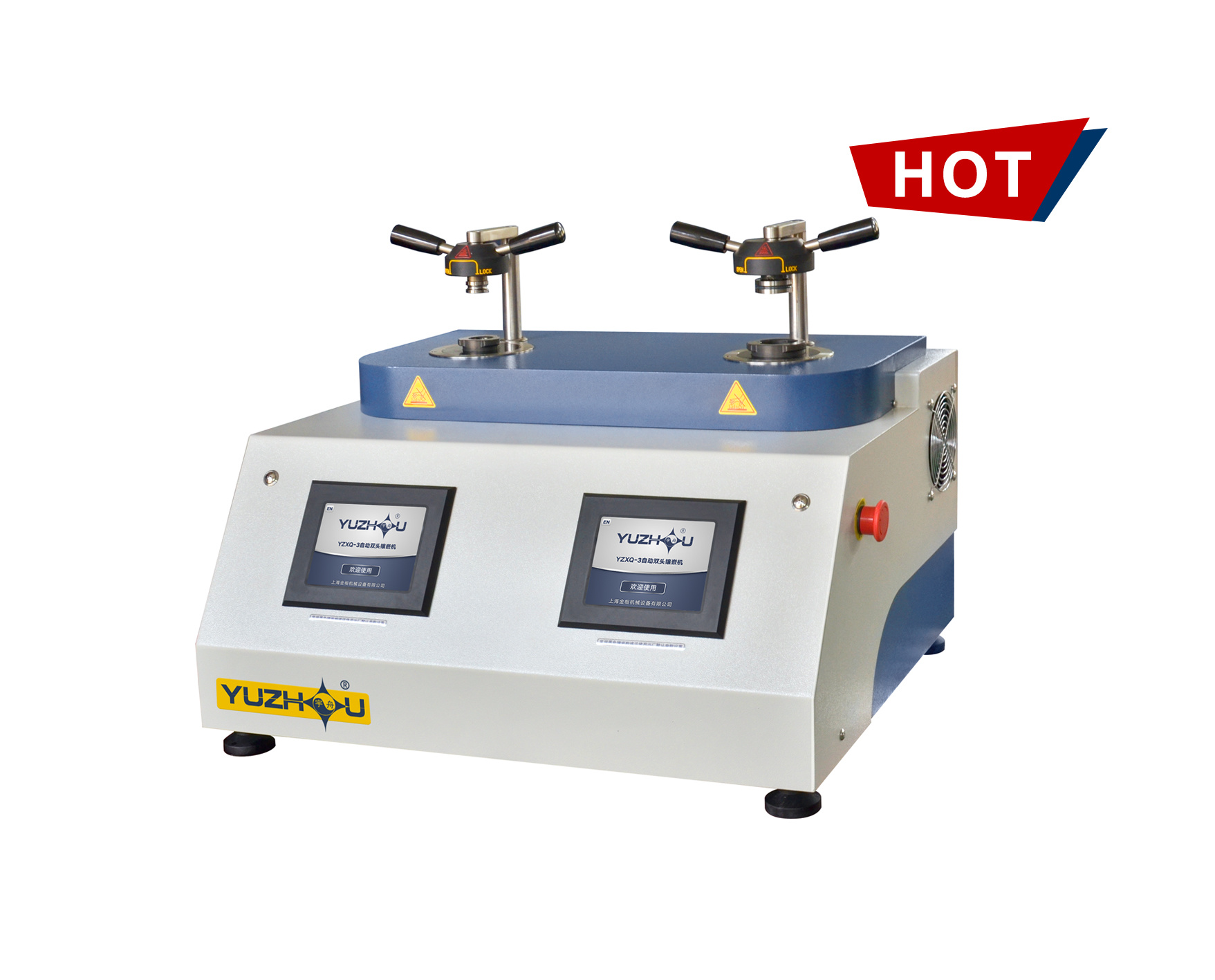

YZXQ-3 Automatic Double Head

Mounting Press

YZXQ-3 Automatic Double Head Mounting Press

编号
898
产品描述
右侧属性

Introduction:

Mounting is a very important process of metallographic sample preparation, especially for some difficult holding tiny samples, irregularly shaped samples, and what needs for protecting edge or automatic grinding and polishing, mounting is an essential procedure before sample preparation. YZXQ-3 is an advanced hydraulic water-cooling automatic sample mounting press. The mounting process is controlled by the program, which realizes the one-key operation of heating, loading, holding, cooling and unloading process. The sample mounting is automatically completed with sound and light alarm function, without the need of the operator on duty. The machine adopts hydraulic pump with higher pressure, which makes the sample more compact. Two mould specification arbitrary selection, the control and operation are independent. Unique cold and heat separation design makes it more safe and stable. High-definition touch screen displays pressure and temperature in real time, and various mounting scheme can be saved. With water cooling system, the mounting speed is fast. One set can be used as two sets, which makes sample preparation easier and more labor saving, the mounting quality is also better and more stable.



Technical Parameters:

Model

YZXQ-3

Mould Diameter

Ф25mm,Ф30mm,Ф40mm (Choose two)

Cavity Height

108mm, effective 60mm

Heating Power

Ф25mm/Ф30mm  1.8kW;  Ф40mm  2.4kW

Pressure

150bar (equivalent to 15Mpa, 150kgf/cm2, not adjustable)

Heating Temperature

50~180℃ (The default is 120℃)

Heating Time

1~7min (The default is 3min30s)

Hold Time

30s~7min (The default is 1min)

Cooling Time

1~30min (The default is 2min)

Total Time

6min30s for Ф30mm

Cooling Method

External water source cooling

Power Supply

220V, 50Hz,16A

Dimensions

650×600×550mm

Net Weight

105Kg



Packing List:

Name

Specification

Qty

Machine Body



1 set

Rotary Handle



2 pcs

Upper Mould Block



2 pcs

Pump Breathing Cap



1 pc

Water Inlet Pipe



1 pc

Water Outlet Pipe

Ф10mm

2 pcs

Water Inlet Filter Screen



1 pc

Hoop



1 pc

Bakelite Powder

500g

1 bottle

Measuring Cup



1 pc

Funnel



1 pc

Usage Instruction Manual



1 copy



YZXQ-3 Automatic Double Head

Mounting Press
