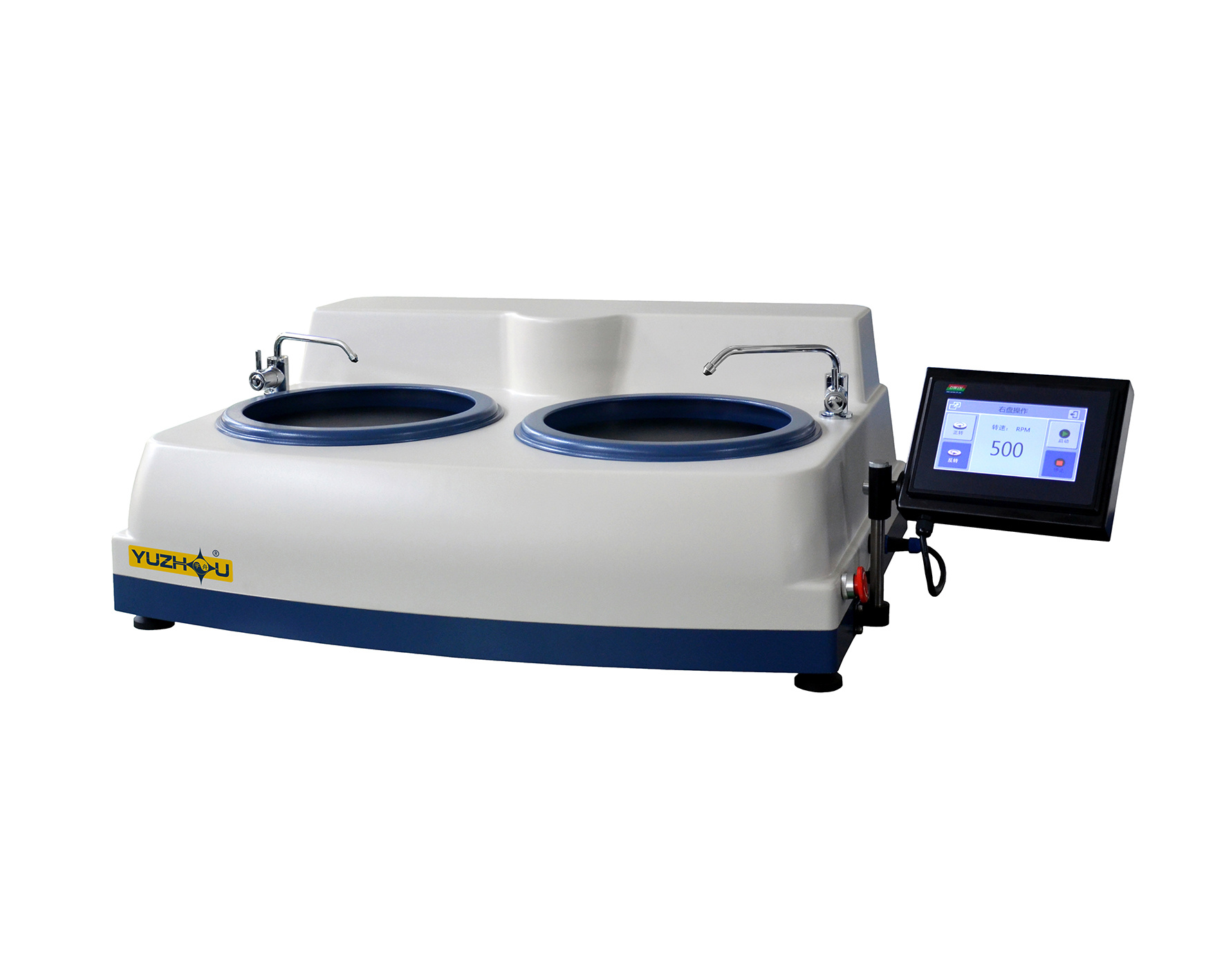

YMP-2-300/250 Metallographic Sample
Grinding and Polishing Machine
Introduction:
This model is a single-chip microcomputer controlled grinding and polishing machine, two discs are independently controlled. The shell is formed with ABS material, which is beautiful in appearance, anti-corrosion and durable. Strong large support chassis design ensures the precision rotary balance. The motor is DC brushless motor which has long service life and low noise and powerful motor brings strong power and efficient grinding and polishing experience. The disc is stepless speed control and can change the rotational direction. With compressed Aluminum three-point support structure, it is more solid and stable. With magnetic grinding disc design, it supports for fast disc replacing system. The disc surface is Teflon painted which makes no residue of changing abrasive paper and polishing cloth. Spindle leak-proof design ensures the bearing without damage. Equipped with cooling water pipe and solenoid water valve control, it can adjust rotational direction for wet grinding and automatically open and close the water. With powerful performance, visual display and easy operation, it is the ideal equipment for the metallographic sample preparation.
Technical Parameters:
|
Model |
YMP-2-300 |
YMP-2-250 |
|
Disc Diameter |
300mm |
254mm |
|
Abrasive PaperDiameter |
300mm |
250mm |
|
Disc Speed |
Stepless speed 50~1000r/min and Four speed 250,500,750,1000r/min |
|
|
Disc Rotational Direction |
Clockwise and Counterclockwise |
|
|
Disc Electromotor |
DC brushless motor, 220V, 1.2kW |
|
|
Control and Display |
7 inch LCD touch screen |
|
|
Power Supply |
220V, 50Hz, 12A |
|
|
Dimensions |
1200×800×360mm |
|
|
Net Weight |
95kg |
|
Packing List:
|
Name |
Specification |
Qty |
|
Machine Body |
|
1 set |
|
Grinding and Polishing Disc |
300（254）mm |
2 pcs |
|
Magnetic Disc |
300（250）mm |
2 pcs |
|
Metal Disc |
300（250）mm |
6 pcs |
|
Abrasive Paper |
300（250）mm |
6 pcs |
|
Polishing Cloth |
300（250）mm |
2 pcs |
|
Water Inlet Pipe |
|
1 pc |
|
Water Outlet Pipe |
|
2 pcs |
|
Water Inlet Filter Screen |
|
1 pc |
|
Inner Hexagon Spanner |
3mm, 5mm, 6mm |
each 1 pc |
|
Usage Instruction Manual |
|
1 copy |
