Products

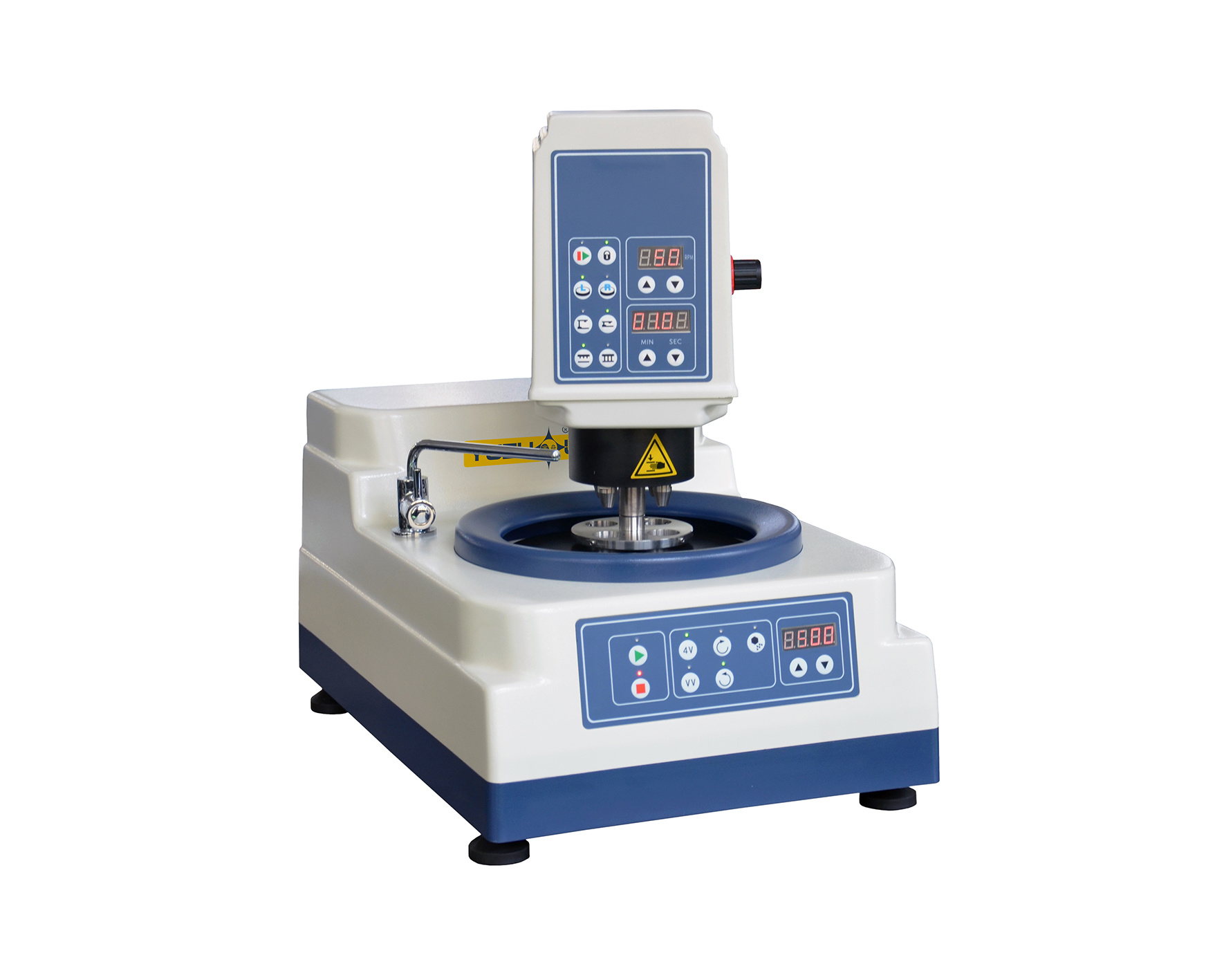

YMPZ-1 Automatic Metallographic Sample

Grinding and Polishing Machine



YMPZ-1 Automatic Metallographic Sample Grinding and Polishing Machine

编号
796
产品描述
右侧属性

Introduction:

YMPZ-1 is a single-chip microcomputer controlled grinding and polishing machine. The shell is formed with ABS material, which is beautiful in appearance, anti-corrosion and durable. Strong large support chassis design ensures the precision rotary balance. It has stepless speed or four speed control and can change the rotational direction. The motor is DC brushless motor which has long service life and low noise and powerful motor brings strong power and efficient grinding and polishing experience. Spindle leak-proof design ensures the bearing without damage. It can adjust the cooling water tube direction for wet grinding. With washing function at the bottom of the grinding disc, it can prevent the accumulation and precipitation of grinding materials. With magnetic grinding disc design, it supports for fast disc replacing system. The disc surface is Teflon painted which makes no residue of changing abrasive paper and polishing cloth. With the automatic locking and timing function of the grinding head, the operation is safe and convenient. This machine can effectively replace the manual grinding and polishing processes, which greatly saves labor and improves the quality of grinding and polishing and the efficiency of sample preparation. Therefore it is the ideal equipment for the metallographic sample preparation.



Technical Parameters:

Model

YMPZ-1

Disc Diameter

230mm

Abrasive PaperDiameter

230mm

Disc Speed

Stepless speed 100~1000r/min,

or Four speed 250, 500, 750, 1000r/min

Disc Rotational Direction

Clockwise or Counterclockwise

Disc Electromotor

DC brushless motor, 220V, 600W

Head Electromotor

Stepper motor, 200W

Head Speed

Stepless speed 20~120r/min

Timing Set

0~99min

Sample Holding Qty.

4 pcs

Sample Holder

Specification

Φ25mm, Φ30mm, Φ40mm (Choose one)

or Customized specification

Pressure Method

Individual air pressure

Pressure Force

0~60N

Control and Display

Film key operation , Nixie tube display, With automatic locking of the grinding head and washing function

Power Supply

220V, 50Hz, 6A

Dimensions

420×660×630mm

Net Weight

50kg



Packing List:

Name

Specification

Qty

Machine Body



1 set

Grinding Head



1 pc

Grinding and Polishing Disc

230mm

1 pc

Magnetic Disc

230mm

1 pc

Metal Disc

230mm

4 pcs

Abrasive Paper

230mm

6 pcs

Polishing Cloth

230mm

2 pcs

Water Inlet Pipe



1 pc

Water Outlet Pipe



1 pc

Water Inlet Filter Screen



1 pc

Air Pipe



1 pc

Head Connection Cable



2 pcs

Inner Hexagon Spanner

2.5mm, 3mm, 6mm

each 1 pc

Usage Instruction Manual



1 copy





YMPZ-1 Automatic Metallographic Sample

Grinding and Polishing Machine
