Products

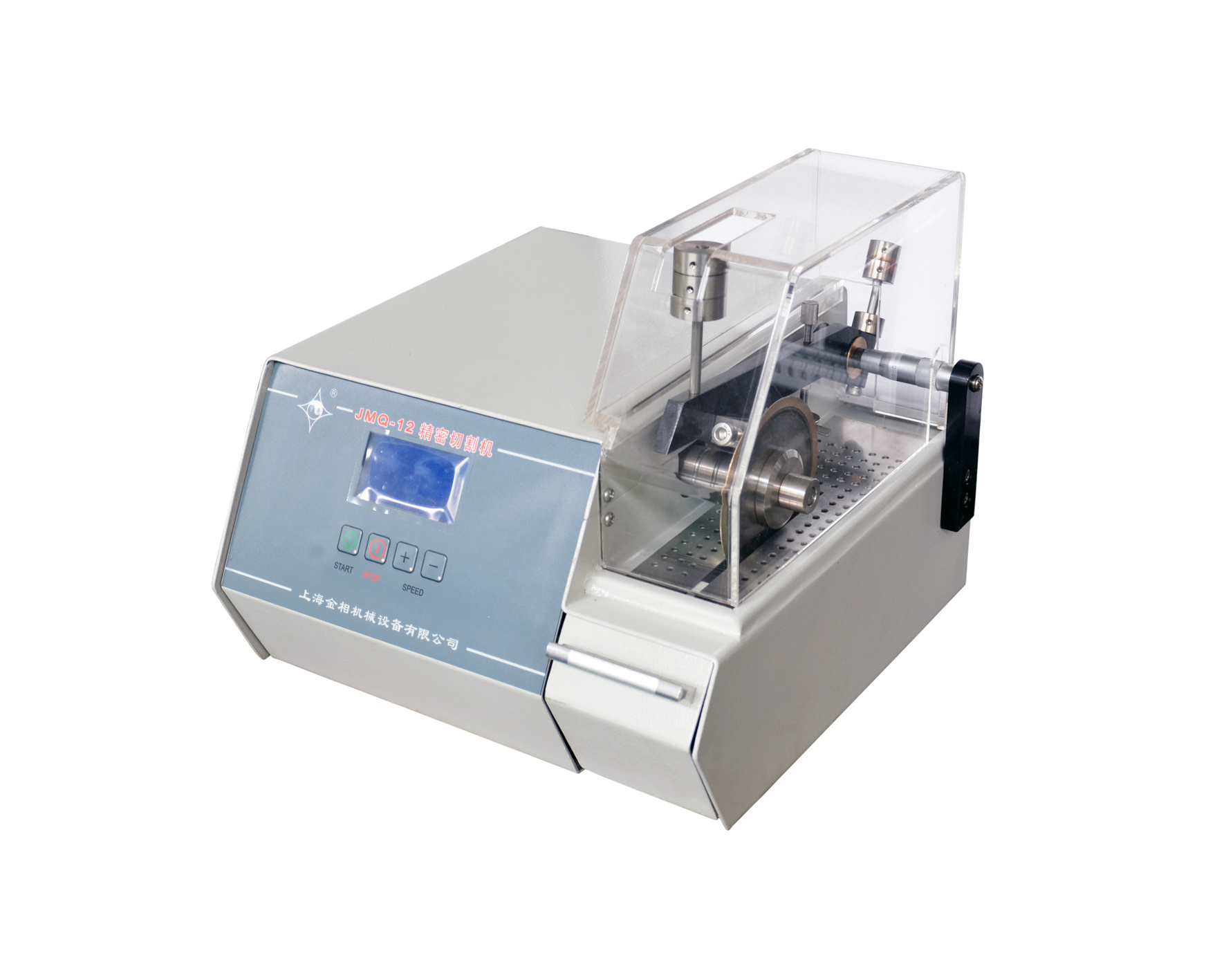

JMQ-12 Low Speed Precise Cutting Machine

JMQ-12 Low Speed Precise Cutting Machine

编号
989
产品描述
右侧属性

Introduction:

JMQ-12 low speed precision cutting machine is mainly used to cut small cylinder, square metal and electronic circuit board materials. The machine adopts deadweight cutting which has a constant load and will stop automatically when the cutting is finished. It has a micrometer to adjust the thickness of the sample for precise cutting which can be used as corollary equipment for TEM. The machine has controllable rotating speed and is equipped with safe and transparent protective cover. To avoid burning the sample due to overheating, the diamond cut-off wheel will bring out the cooling water when cutting to cool the wheel and the sample. The surface of the sample after cutting is bright and flat without burns, thus it is an excellent machine for cutting small material and electronic circuit boards.



Technical Parameters:

Model

JMQ-12

Cutting Method

Automatic, Deadweight cutting

Cut-off Wheel

Φ100×0.7×Φ12.7mm

Max. Cutting Capacity

Φ25mm

Xaxis Travel

12mm,Step 0.1mm

Spindle Speed

50~800r/min

Electromotor Power

600W

Control and Display

Film key operation , LCD display

Power Supply

220V, 50Hz,6A

Dimensions

350×380×290mm

Net Weight

24kg





Packing List:

Name

Specification

Qty

Machine Body



1 set

Cut-off Wheel

Φ100×0.7×Φ12.7mm

Diamond cut-off wheel

1 pc

Plexiglass Shield



1 pc

Inner Hexagon Spanner

2mm, 4mm, 5mm, 6mm

each 1 pc

Power Cable



1 pc

Usage Instruction Manual



1 copy







JMQ-12 Low Speed Precise Cutting Machine
