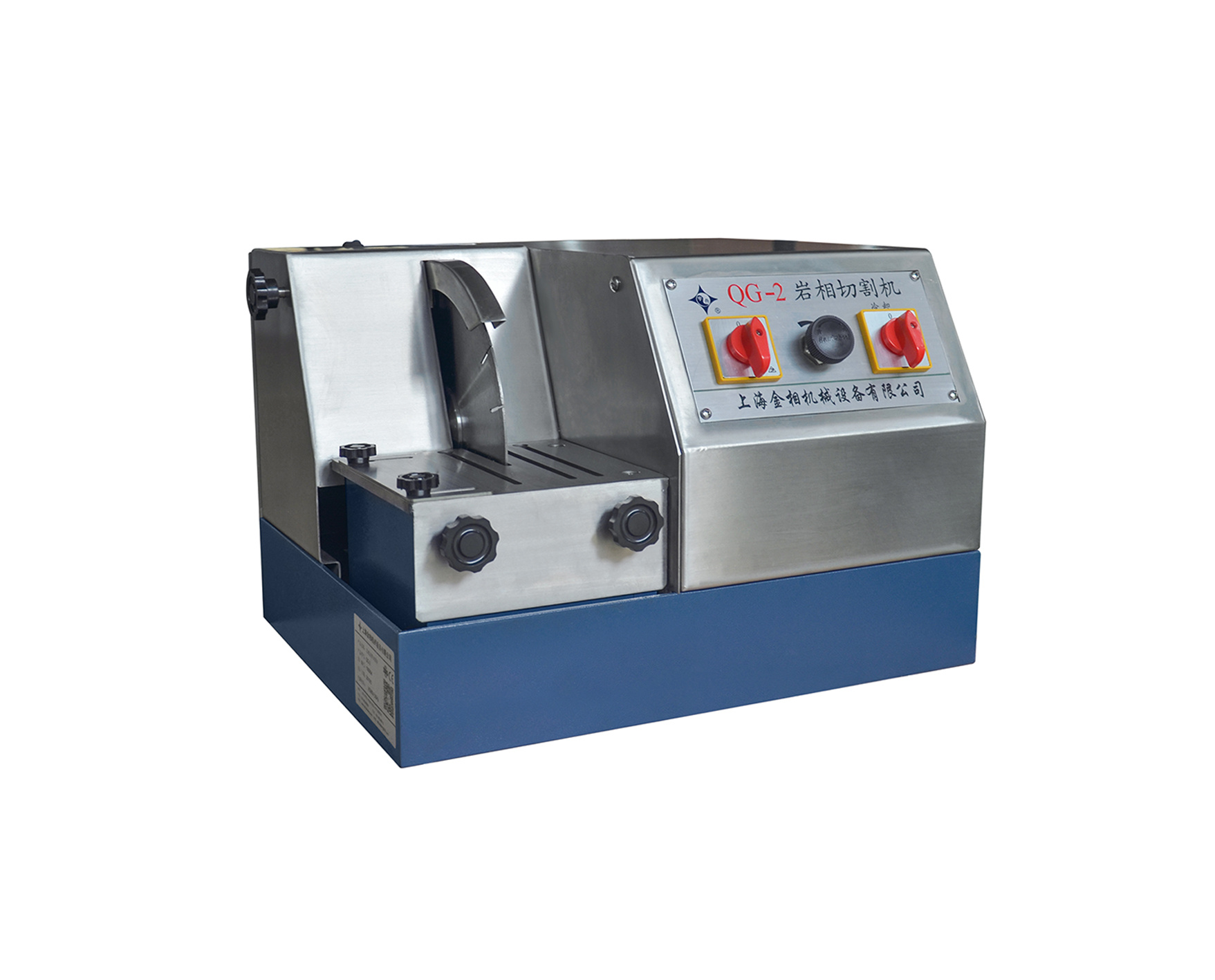

QG-2 Lithofacies Sample Cutting Machine

QG-2 Lithofacies Sample Cutting Machine

编号
987
产品描述
右侧属性

Introduction:

Cutting is the first important procedure in the process of the sample preparation. This machine is suitable for the general lithofacies materials. The shell, axle sleeve, jaw, work table and other main parts are all made of stainless steel, which can endure long time. It adopts quick clamp for manual feeding which is very convenient to operate. With circulating cooling water tank, the surface of the sample after cutting is bright and flat without burns, thus it is the ideal equipment for cutting lithofacies samples.



Technical Parameters:

Model

QG-2

Cutting Method

Manual, Clamp feeding along Y axis

Cut-off Wheel

Φ250×2×Φ32mm

Max. Cutting Capacity

65×65mm

Spindle Speed

1400r/min

Electromotor Power

1.1kW

Clamping Tool

Stainless steel clamp,Jaw height 52mm

Power Supply

380V, 50Hz,6A, Three-phase four-wire

Dimensions

490×600×330mm

Net Weight

45kg

Water Tank Capacity

36L

Pump Flow

12L/min

Water Tank Dimensions

300×500×450mm

Water Tank Weight

20kg



Packing List:

Name

Specification

Qty

Machine Body



1 set

Water Tank



1 set

Cut-off Wheel

Φ250×2×Φ32mm

Diamond cut-off wheel

1 pc

Clamp



1 pc

Plexiglass Shield



1 pc

Spanner

36mm, 24×27mm

each 1 pc

Water Inlet Pipe



1 pc

Water Outlet Pipe



1 pc

Usage Instruction Manual



1 copy




QG-2 Lithofacies Sample Cutting Machine
