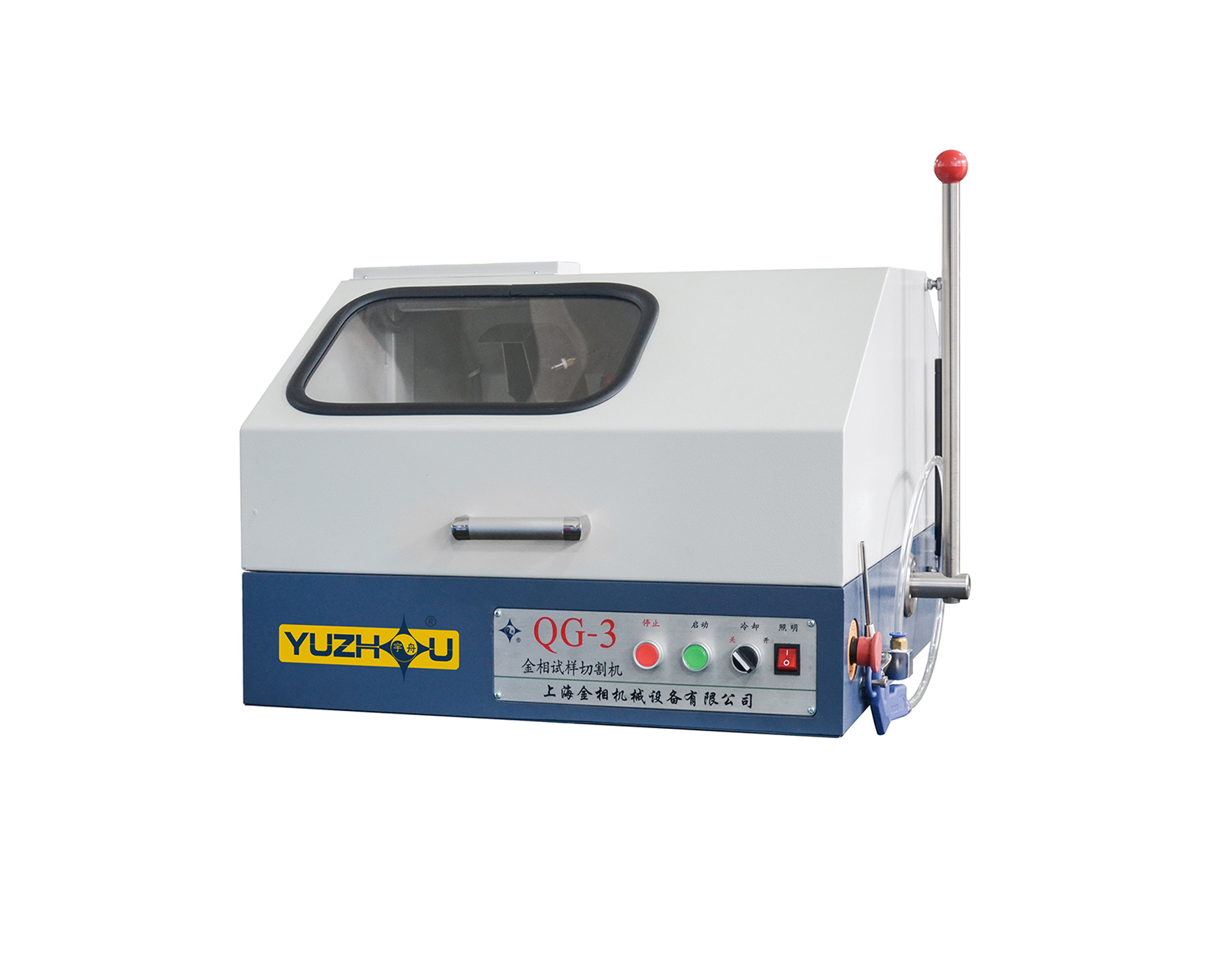

QG-3 Metallographic Sample Cutting Machine
Introduction:
This machine is suitable for general metallographic and lithofacies materials. By pulling the spindle and using the spindle gravity to cut the sample, the speed is high and the cutting ability is strong. It adopts the double-sided clamp structure, which can fix the sample firmly. The main parts of the clamp and cutting table are all made of stainless steel, which has long service life and convenient maintenance. The cutting chamber adopts closed structure with safety limit switch, while there is an opening in the left of the cover which can cut long strip samples, and it has the transparent plexiglass window and built-in LED lamp for observation when cutting. With circulating cooling water tank, the surface of the sample after cutting is bright and flat without burns, thus it is the ideal equipment for sample cutting. This model is divided into benchtop and floor type for customers to choose.
Technical Parameters:
Model | QG-3 |
Cutting Method | Manual |
Cut-off Wheel | Φ300×2×Φ32mm |
Max. Cutting Capacity | 85×85mm |
Spindle Speed | 2800r/min |
Electromotor Power | 3kW |
Cutting Table (X*Y) | 204×240mm，T-slot 12mm |
Clamping Tool | Quick clamp，Jaw height 60mm |
Power Supply | 380V, 50Hz，10A, Three-phase four-wire |
Dimensions | 730×700×540mm（750×730×1200mm floor type） |
Net Weight | 125kg（180kg floor type） |
Water Tank Capacity | 60L |
Pump Flow | 25L/min |
Water Tank Dimensions | 565×360×600mm |
Water Tank Weight | 27kg |
Packing List:
Name | Specification | Qty |
Machine Body |
| 1 set |
Water Tank |
| 1 set |
Cut-off Wheel | Φ300×2×Φ32mm Resin cut-off wheel | 2 pcs |
Cutting Fluid | 3kg | 1 bottle |
Spanner | 14×17mm，24×27mm | each 1 pc |
Inner Hexagon Spanner | 6mm, 8mm | each 1 pc |
Water Inlet Pipe | 1/2 Metal pipe | 2 pcs |
Water Outlet Pipe | Φ50mm | 1 pc |
Usage Instruction Manual |
| 1 copy |
